Amplifier:
• Gain: +18dB
• Max Input Level (before soft clipping): 2.25Vpp
• Max Output: 18Vpp
• Input Impedance: 1 MÙ
• Output Impedance: 1 kÙ
• 20Hz – 20kHz, +/- 1dB
Attenuator:
• Gain: -18dB
• Max Input Level (Nominal): 20Vpp
• Max Output Level (Nominal): 2.5Vpp
• Input Impedance: 8 kÙ
• Output Impedance: 880 Ù
• 20Hz – 20kHz, +/- 1dB
€149,00

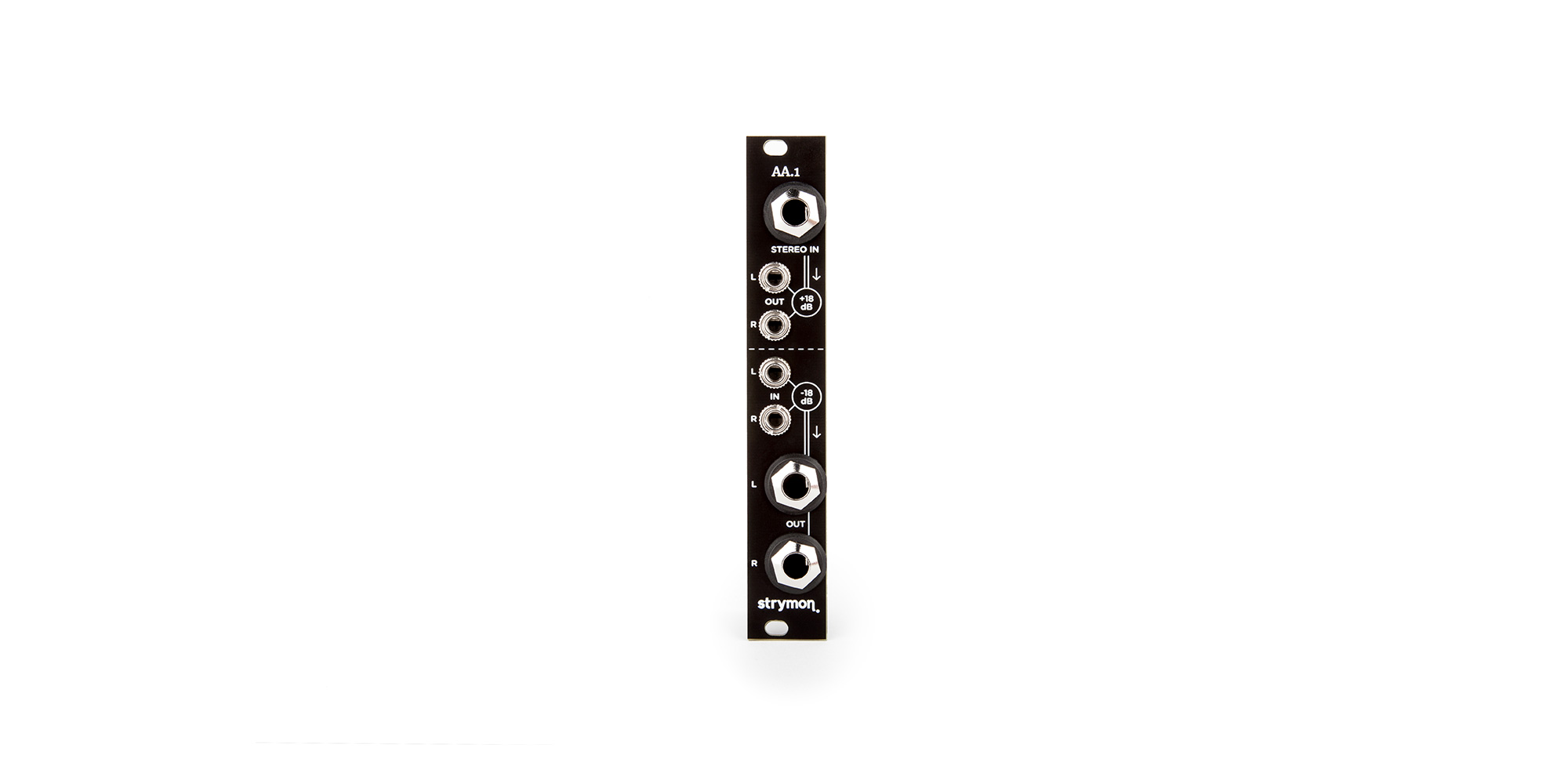

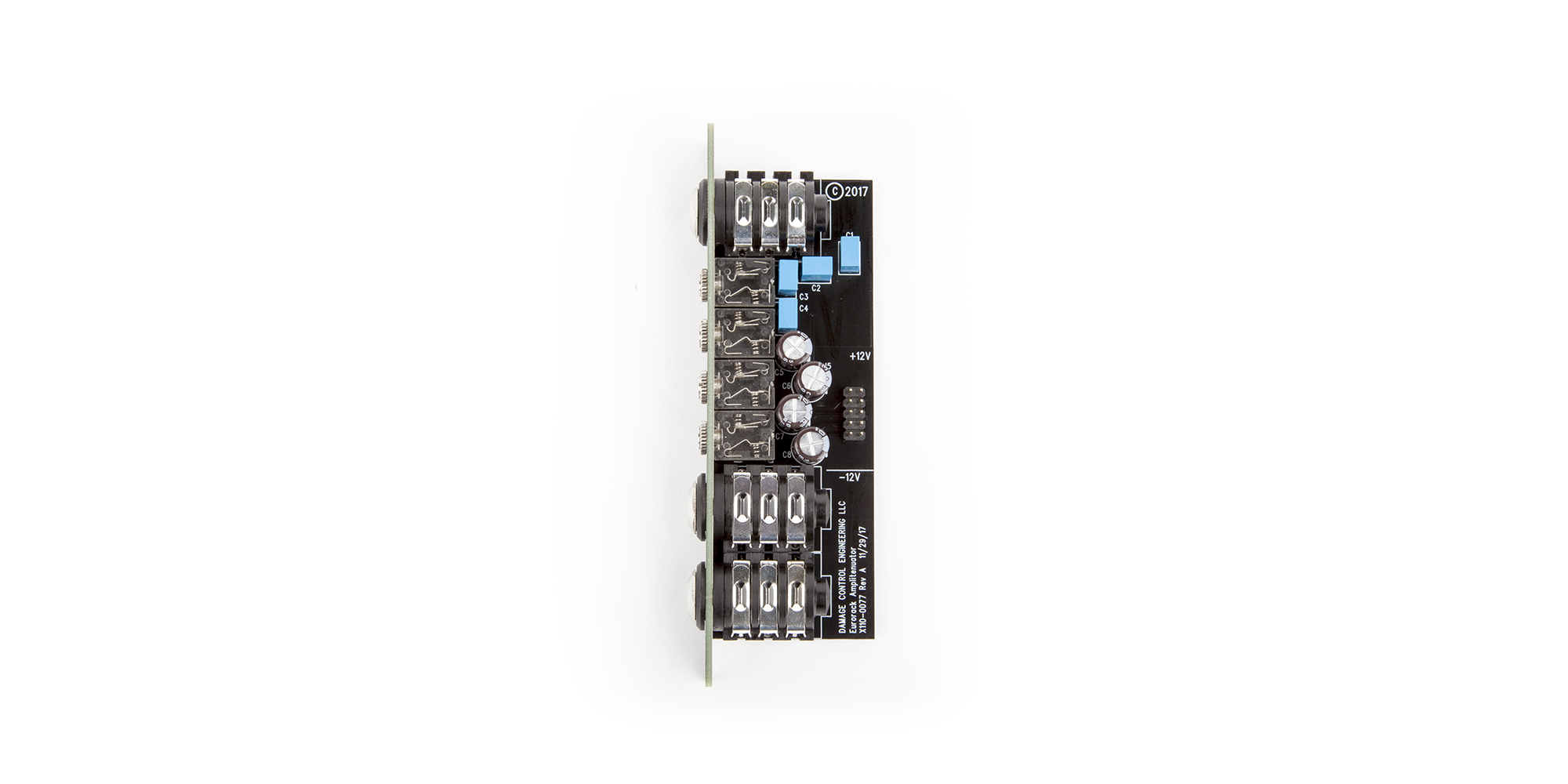

AA.1 is designed to be your bridge between the world of guitar pedals and the world of Eurorack modular. This compact 4HP amplifier attenuator module has everything you need to interface your modular with your guitar effects pedals as well as with your guitar or bass.
