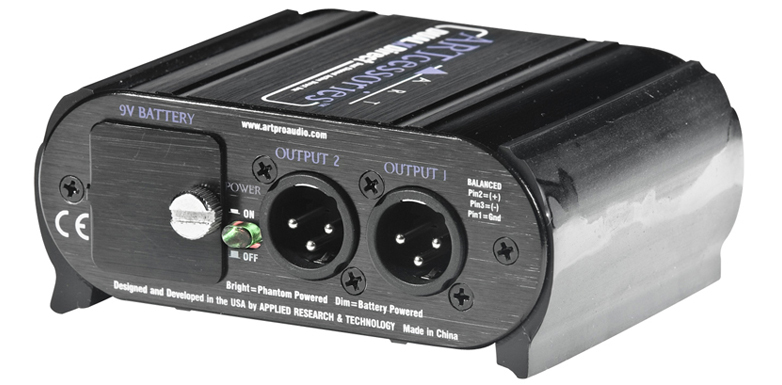

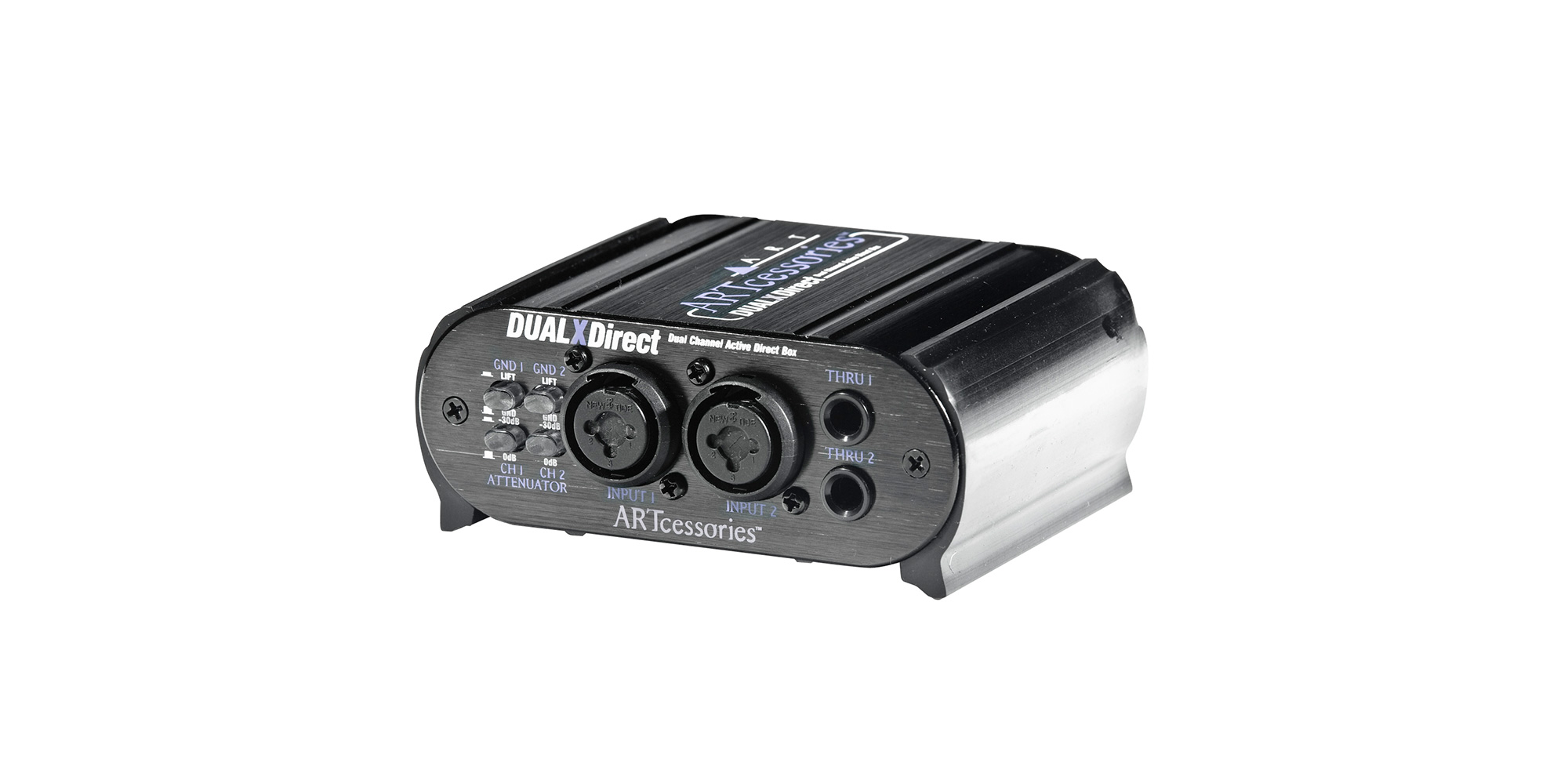

DUALXDIRECTâ„¢ – DUAL PROFESSIONAL ACTIVE DIRECT BOX The DUALXDirect provides two independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance 1/4″ and XLR inputs (provided via “combo” jacks) are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments. The input ATTENUATOR switches allow for a wide range of signal levels and the input THRU jacks allow for tapping off of your signal chain. The GROUND LIFT switches let you totally separate the input and output signal grounds, when appropriate, to isolate two systems, thereby reducing hum and ground-loop noise. The DUALXDirect''s active circuitry is powered by phantom voltage from the OUTPUT connections or by an internal 9V battery, when external power is not available. When powered by a battery, it draws less than 7.5 mA which should provide more than 100 hours of operation with a new battery (alkaline recommended). If phantom power is available, then the DUALXDirect will automatically draw its power from the external source. The POWER ON/OFF switch lights more dimly when the unit is running off of the battery, lights more brightly when it is running off of phantom power, and is off when the unit is inactive. The compact black-anodized all aluminum case and it's active design allow the DUALXDirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It's full feature set, rugged construction, and high-end specifications make the DUALXDirect the obvious choice. Features ° Fully active design ° Phantom voltage or 9V battery powered ° Converts high-impedance balanced / unbalanced inputs into 600 Ohm balanced outputs ° Switchable input attenuation (0, -30 dB) ° Switchable ground lift ° 1/4″ TRS / XLR combo connector inputs ° XLR connectors for balanced outputs ° Rugged extruded aluminum case ° Frequency Response: 10 Hz – 100 kHz, ± 0.5 dB @ +0 dBu ° THD: 100 dB (typical) ° Channel Separation: > 80 dB (typical) ° Maximum Input Level: +4, +34 dBu ° Maximum Output Level: +6 dBu (battery powered), +14 dBu (phantom powered) ° Input Connections: 1/4″ TRS | XLR female balanced / unbalanced (2), 470k Ohm ° Thru Connections: 1/4″ TRS (2) ° Output Connections: XLR male balanced (2), <600 Ohm ° Input Attenuation: Switchable, (0, -30 dB) ° Power Requirements: 9V @ 7.5 mA (battery, alkaline recommended), 18 – 48V DC @ 6.4 mA (phantom power per channel) ° Dimensions (DWH inches): 3.9 x 4.6 x 1.85 ° Dimensions (DWH mm): 99 x 117 x 47 ° Weight: 0.84 lbs / 0.38 kg ARTcessoriesâ„¢ Series Overview ARTcessories are taking the audio world by storm and quickly becoming a popular brand with musicians, DJs and studio engineers everywhere around the World. Split, combine, mix, power… you name it. On stage, in the studio, in your living room, they're easy to use and are built to last. For those times when you need a little box to fix a big need or to make more out of a smaller project, ARTcessories has you covered. You'll discover a robust line of useful tools which include a complete range of direct boxes, headphone amps, small mixers, mic cable combiner/splitters and much more. ARTcessories are designed to deliver affordable solutions for a multitude of audio needs for any size project.
