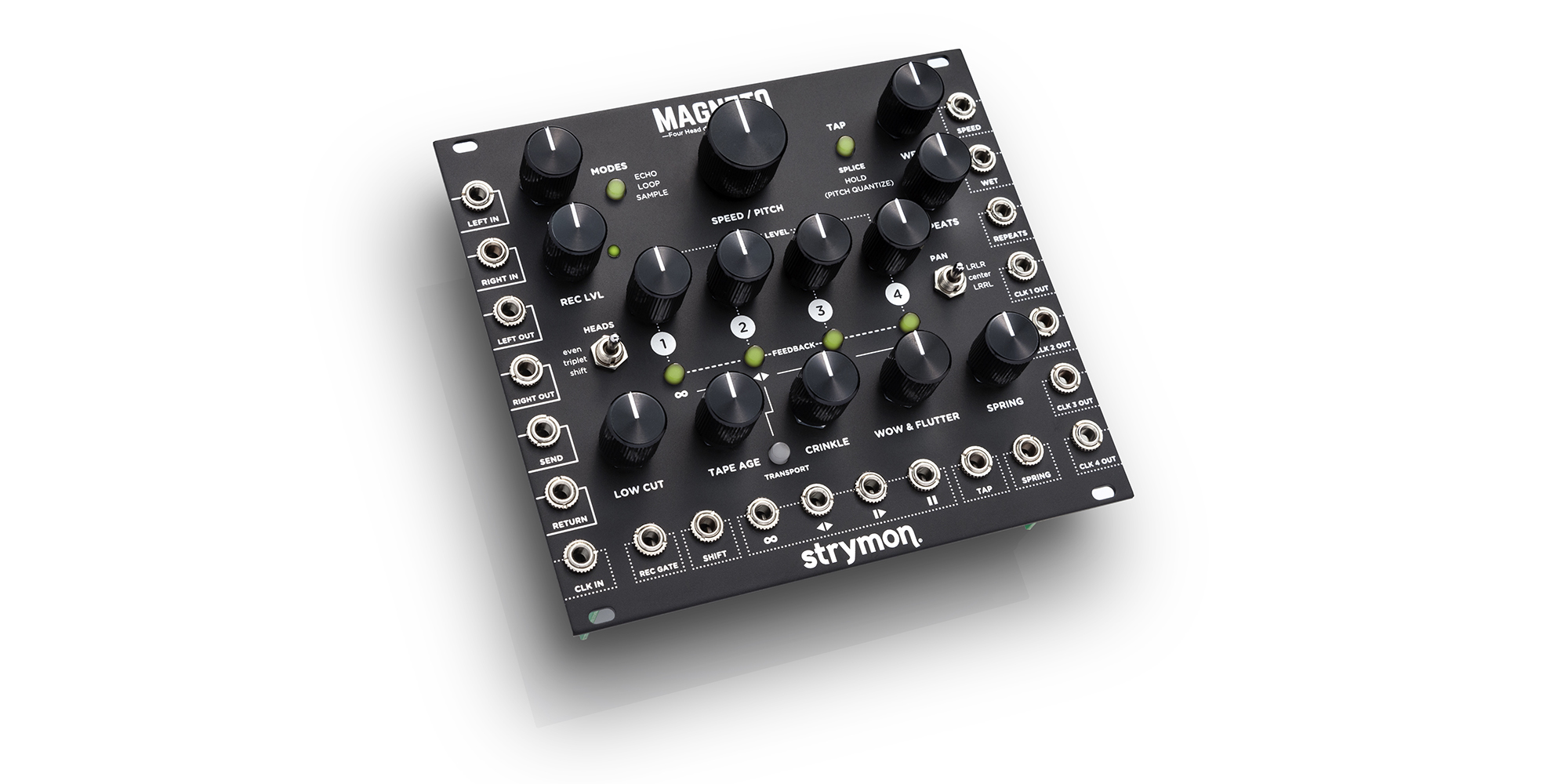

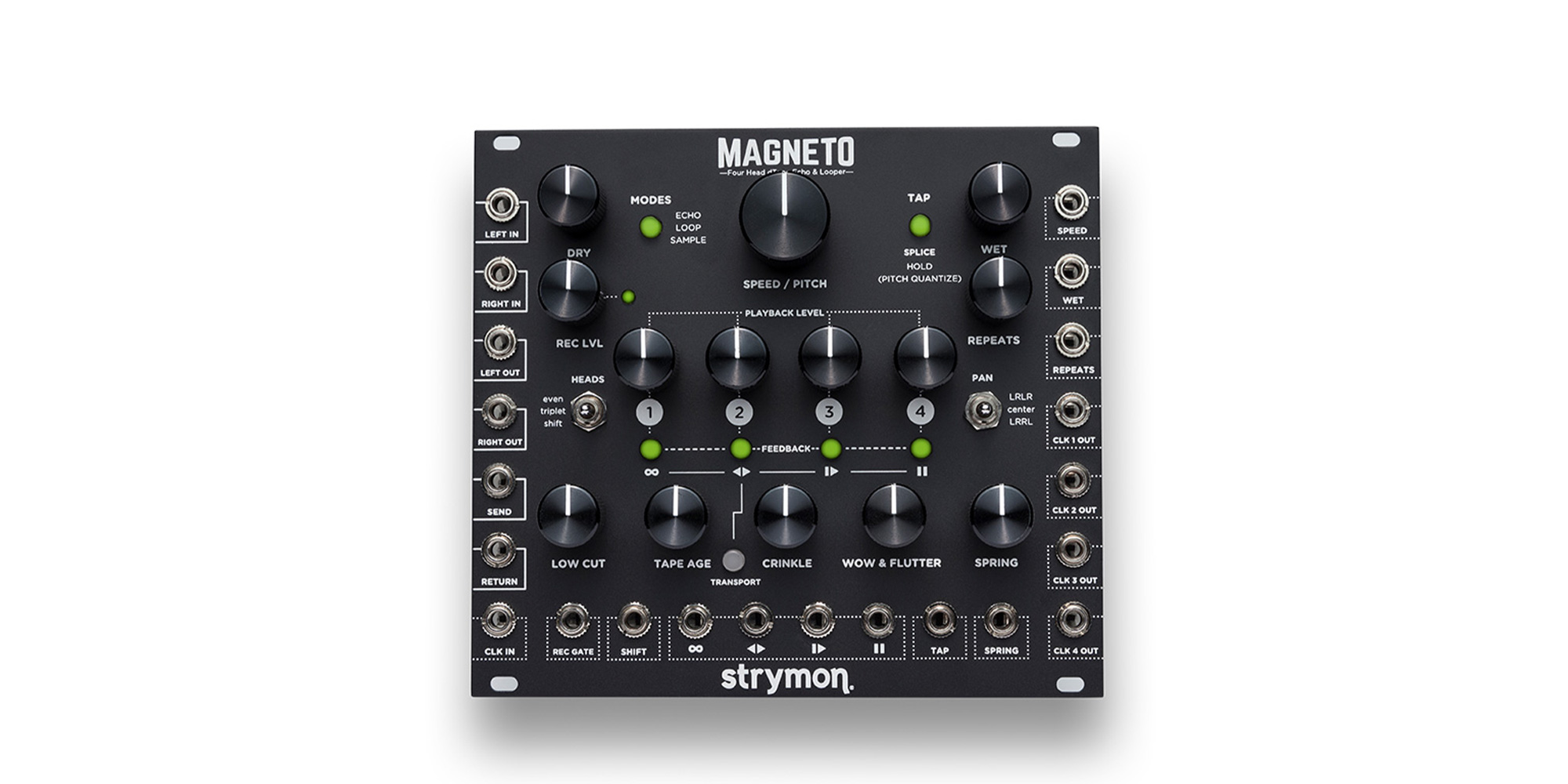

MAGNETO

• Tape-voiced delay machine with four playback heads and one record head

• Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems

• Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler

• Varispeed algorithm with dynamic machine mechanics, 8:1 speed range

• Input record level for clean reproduction to warm, fat saturation

• Self-oscillating for tone generation

• Independent Spring Reverb

• Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, • Crinkle, Wow & Flutter

• Transport controls (buttons and CV inputs) for real-time performance options

• Individual Playback Head Level controls

• Individual head Feedback assignment independent of playback level

• Three stereo head panning options, including user-defined custom panning

• Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV

• Maximum Delay/Loop Time: 15 seconds at maximum Speed, two minutes at minimum Speed

• Minimum Delay Time: 200µS at maximum speed

• Clock In CV Range: 50ms – 15s

• TAP Button Range: 50ms – 15s

• TAP CV Range: 10ms – 15s

• Analog dry path for a zero latency dry signal that is never converted to digital

• Super high performance SHARC DSP

114db typical signal to noise

• Sampling Rate: 96kHz

• Audio Input Impedance: 22 kOhm

• Maximum Audio Input Level: 20 Vpp

• Audio Output Impedance: 1 kOhm

• Maximum Audio Output Level: 20 Vpp

Power

• +12V rail: 210mA

• -12V rail: 210mA

• +5V rail: 0mA

Dimensions

• Rack Width: 28hp

• Rack Depth: 41mm, 1.61”

• Designed & Built in the USA
