• Input type 1/4” Unbalanced TS
• Input impedance 1MΩ
• Max Input Level 7Vpp (+10dBu)
• Output Type 1/4” Unbalanced TS
• Output Impedance 100Ω
• Max Output Level 7Vpp (+10dBu)
• Power Connector Center negative 2.1 x 5.5 mm barrel plug (the standard 9V)
• Frequency Response 20Hz to 22kHz
• EQ LOW FRQ Boost/Cut ± 9dB, 600Hz corner Freq.
• EQ HI FREQ Boost/Cut ± 10dB, 1.5kHz corner freq.
• Indicator Check indicator white LED

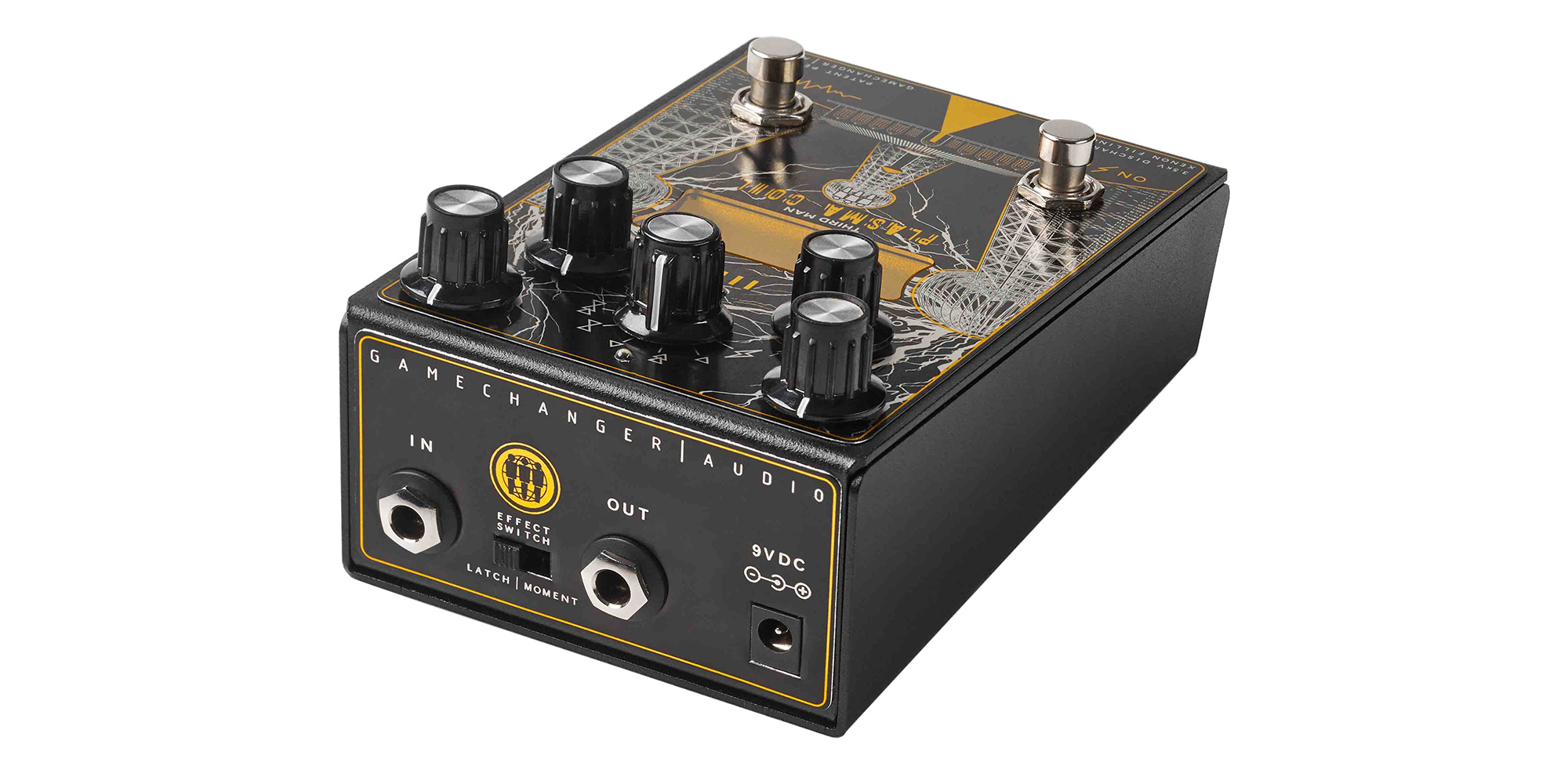

• Connectors IN, OUT, DC input
• Power Requirements 300mA, 9VDC
• Peak Power Consumption 2.7 W
• Mean Power Consumption 1 W
• Power Consumption during Stand-by 0.025 W
• Dimensions 148 mm * 96 mm * 70 mm
• Weight 840 g / 1.8 lbs
€359,00
3 in stock

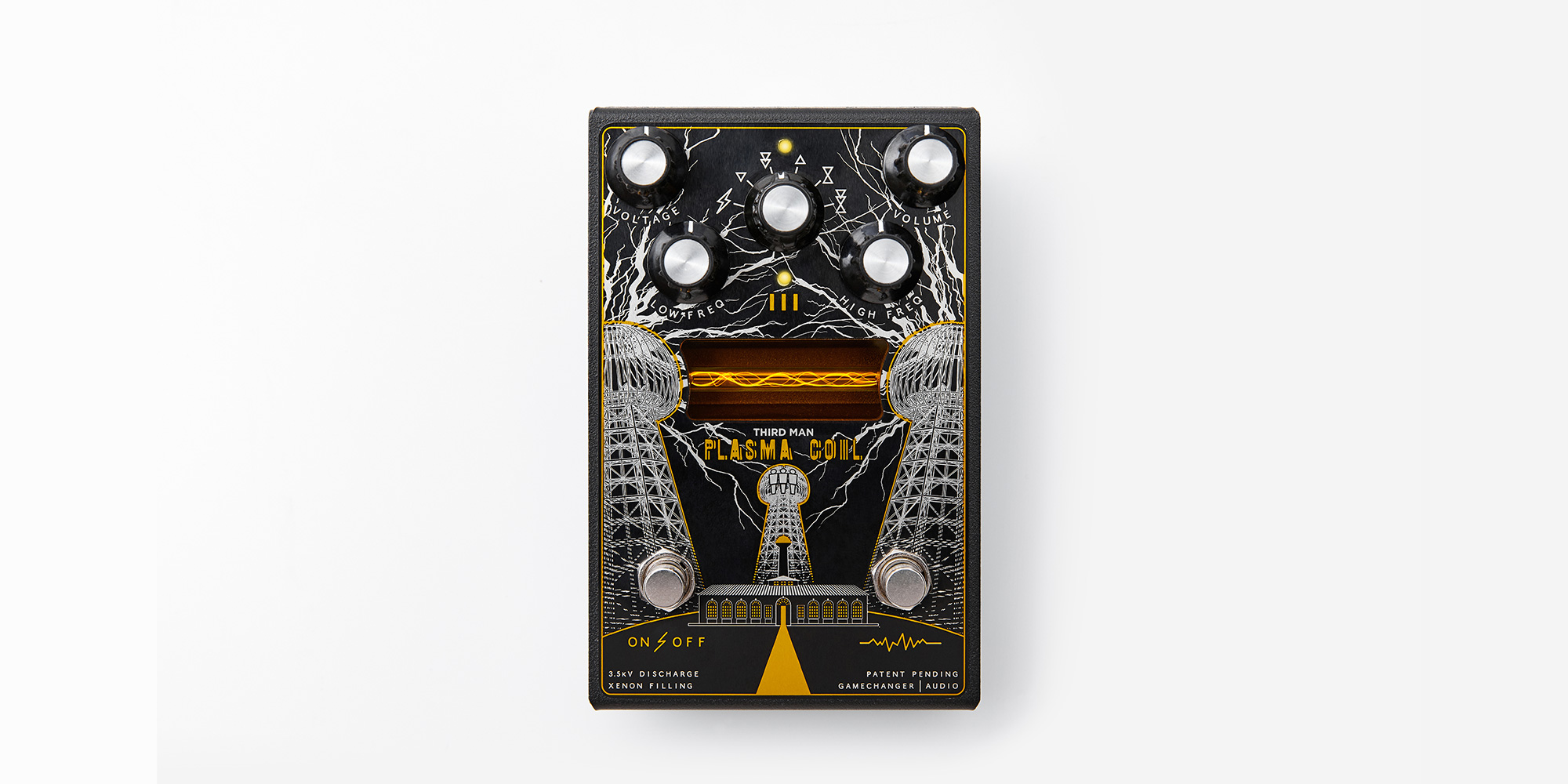

The PLASMA Coil is a version of PLASMA pedal designed together with Jack White and Third Man Records. Jack White used it on the Raconteurs’ latest album Help Us Stranger and in the following tour.
The PLASMA Coil takes HIGH VOLTAGE DISTORTION to new heights by adding intense, gritty and glitchy octave up and down effects that are achieved by driving the high voltage transformer and are unique:
• High Voltage PLASMA Distortion circuit converts audio signal into a series of Electrical discharges at 3.5 kV.
• 2 EQ Controls to boost or cut LOW and HIGH frequencies;
• VOLTAGE Knob – adjusts the amount of electrical current sent to the PLASMA Tube.
• EFFECT Knob allows you to select 1 of 6 different Special EFFECT types:
• Volume Boost
• 2 Subharmonic modes (Bitcrush-style Octave Down)
• 1 Upper Harmonic mode (Octafuzz-style Octave Up)
• 2 Mixed modes (Upper and Lower harmonics combined)
• EFFECT Footswitch – engages the PLASMA COIL’s special effect circuit.
• Master VOLUME Knob – cuts or boosts the Output Signal level.
• ON/OFF silent footswitch.
• Effect Footswitch TOGGLE – configure EFFECTS Footswitch as a latching ON/OFF switch or as a Momentary switch.
